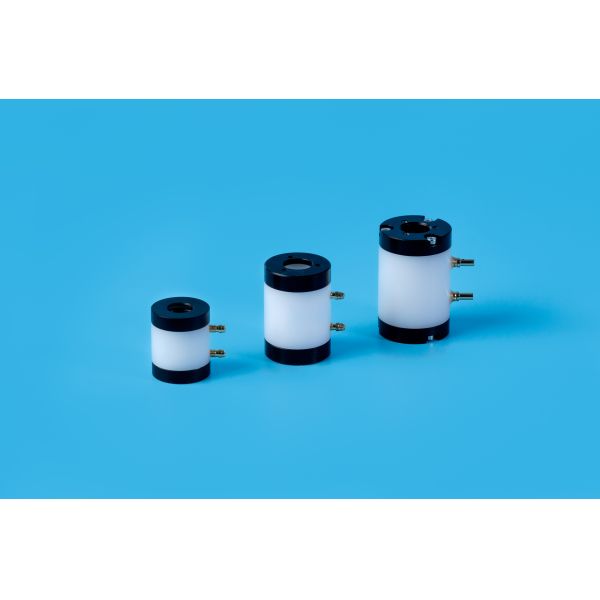

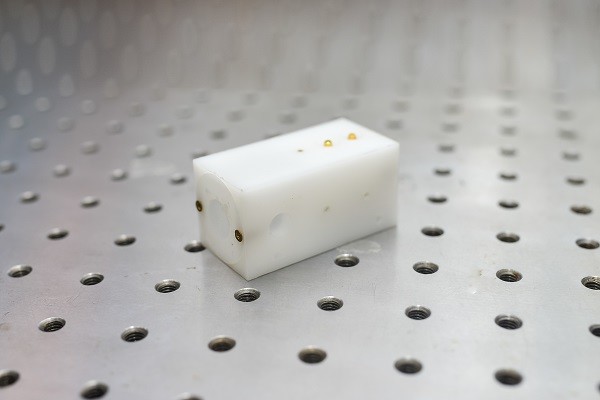

DKDP Pockel Cell Q Switch For Low Repetition Rate DPSS Nd:YAG Lasers
Products Description:
Potassium Dideuterium Phosphate (DKDP, KD*P) crystal are a kind of very excellent electro-optical material,
Crystrong provides bulk supply of high quality KDP and DKDP crystals in diverse sizes for the above applications, as well as custom-made services of crystal select, design and processing.
Application Notices on DKDP Series Q-switch:
- Core exposure or loose contact is forbidden.
- Recommend to be operated at constant temperature.
- Please avoid any intense impact or vibration.
- Unauthorized disassembly is forbidden.
KDP and DKDP is routinely used for Q-switching applications from the UV out to about 1.1 um where absorption limits its use in active cavities, although it can be useful at longer wavelengths when a few percent of absorption can be tolerated.
KD*P based Pockels cells are routinely used for Q-switching applications from the 400 nm to about 1.1um. Most of commercial flash-lamp pumped Nd:YAG lasers and low repetition rate DPSS Nd:YAG lasers are equipped with KD*P based Pockels cell for laser cavity Q-switching.
Elector-optical KD*P crystals have high laser power resistant dielectric AR coatings. Additionally some series Pockels cells have AR coated windows for improved lifetime and protection in less user friendly environment.
ADVANTAGES:
- Economically priced and huge OEM discount
- AR-coating, mounting and re-polishing service
- Strict quality control
- Fast delivery
- Compact size
- Low absorption
- Transmission from 400nm to 1100nm
- Superb technical support always
SPECIFICATIONS:
| Aperture | up to 100x100mm2 |
| Length | Minimum up to 1 mm,Maximum up to 40mm |
| Dimension tolerance | ±0.1mm |
| Deuteration Level | >98% |
| Parallelism | 20 arc seconds |
| Perpendicularity | 5 arc minutes |
| S/D | 10/5 |
| Flatness | λ/8@633nm |
| Angle tolerance(degree) | 0.25°,0.25° |
| Chamfer | 0.2mmx45° |
| Chip | 0.1mm |
| Optical Damage Threshold | >4GW/cm2@1064nm,20 |
| λ/4 Voltage | <3.6KV@1064nm,20 |
| λ/2 Voltage | <6.4KV@1064nm,20 |
| Wavelength range | 300-1100nm |
| Extinction Ratio | >1200:1 |
| Capacitance | 6~10pF@1kHz |
| Quality Guarantee | According to customer requirements one year under proper use. |
Package:
1. Industrial package: plastic tube + paper carton
craft paper + paper carton
2. Individual package: individual paper box + paper carton
3. As customer's demand
Shipping Methods:
1. Express, such as DHL, TNT, Fedex, UPS for small cargos ( GW < 100KGS)
